Tango+ OBD Frameworks

Tango+

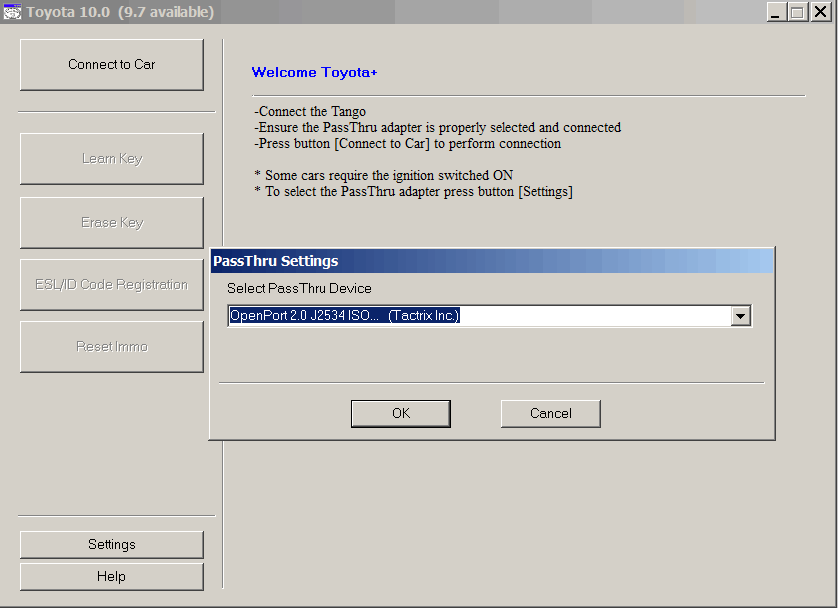

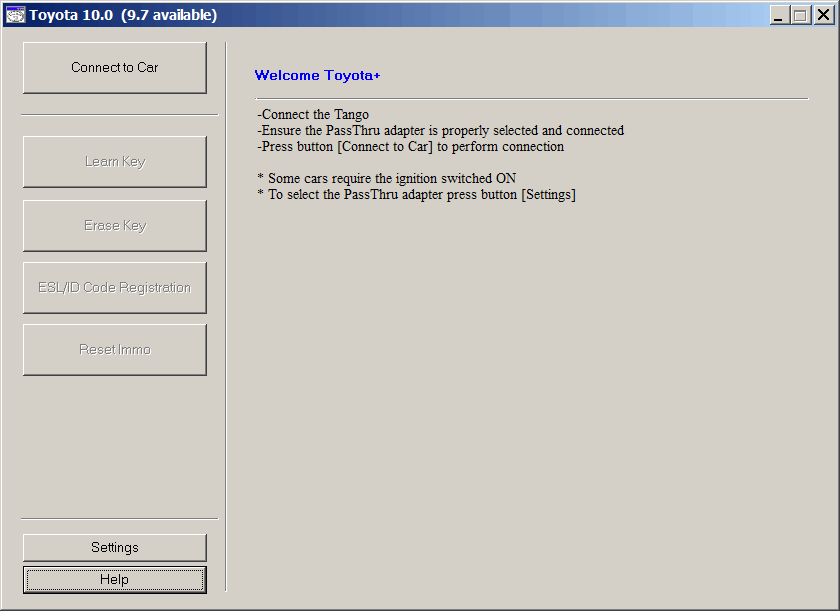

Toyota v10.7

Is a comprehensive, ever evolving OBD Framework for Toyota & Lexus vehicles.
Its coverage spans over the last eighteen years, from 40-bit Immobilizers all the way to the latest (2026) smart systems.
In particular "All Keys Lost" solutions for newest Toyota/Lexus smart systems spanning between 2017-2026 based on DST AES & Hitag AES using Page 1 A8, A9, AA, BA, B9 keys. Coverage of vehicle models like, but not limited to, Camry, CH-R, Corolla, Highlander, Land Cruiser, Lexus ES, LX570, Prius, RAV4, RX450H, RX350 and so on.
Added with update 10.3 Suzuki Denso smart systems based on DST AES Page 1 BA & HITAG AES Page 1 AA
Added with update 10.5 Mazda Denso smart systems based on HITAG AES Page 1 BA
Added with update 10.7 Toyota smart systems based on DST AES Page 1 B6, B7, B8

Features

Highlights

  • All Keys lost solutions
  • All generations DST & Hitag Toyota/Lexus Smart Systems
  • DST Smart keys with Page1 : 94, D4, 98, A8, 88, A9, 39, AA, BA, B6, B7, B8, B9,
  • Hitag AES Smart keys with Page1 : AA, BA
  • Mazda Denso Hitag AES Smart keys with Page1 : BA
  • Suzuki Denso DST AES Smart keys with Page1 : BA
  • Suzuki Denso Hitag AES Smart keys with Page1 : AA
  • Keys Learn/Erase
  • Key learn of used smart keys DST AES with Page1: AA, BA, B9, B6, B7, B8
  • Key learn of used smart keys HITAG AES with Page1: AA, BA
  • IDcode & ESL registration
  • 40bit DST Immobilizers
  • 80bit G-Immobilizers
  • 128bit H-Immobilizers
  • Immobilizer Reset

Getting started

What do I need ?

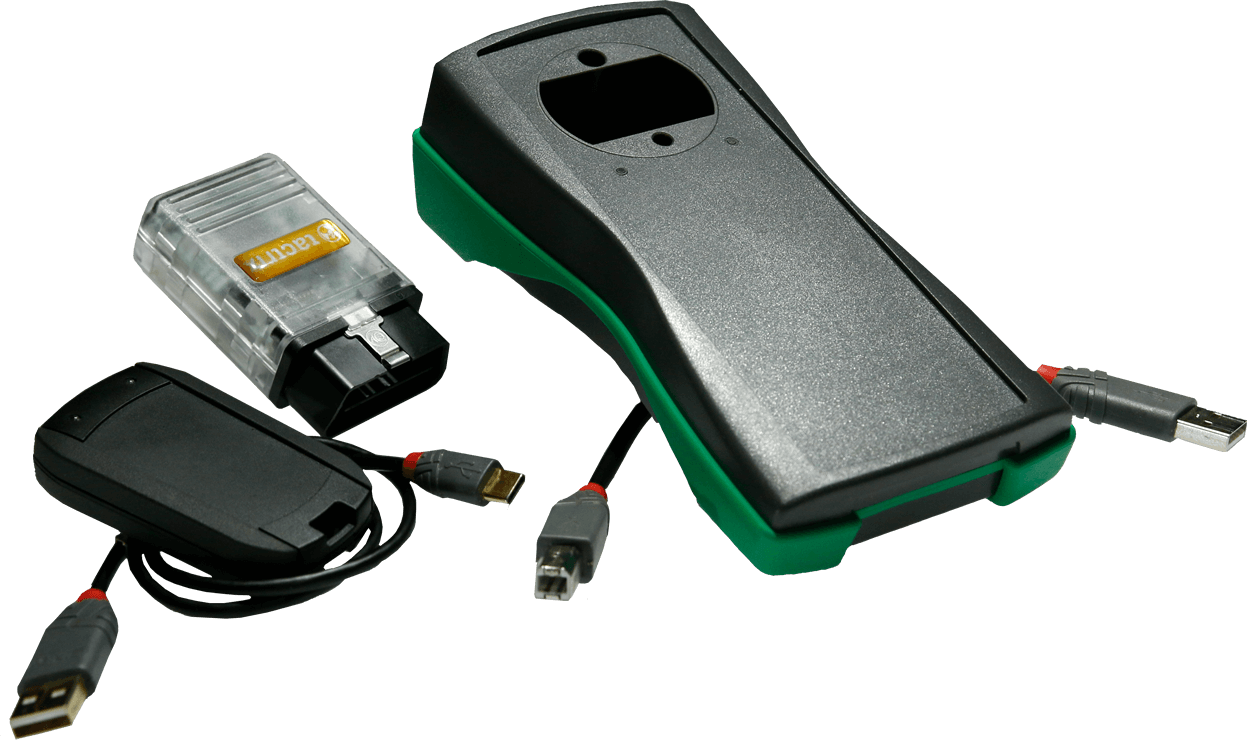

System Requirements

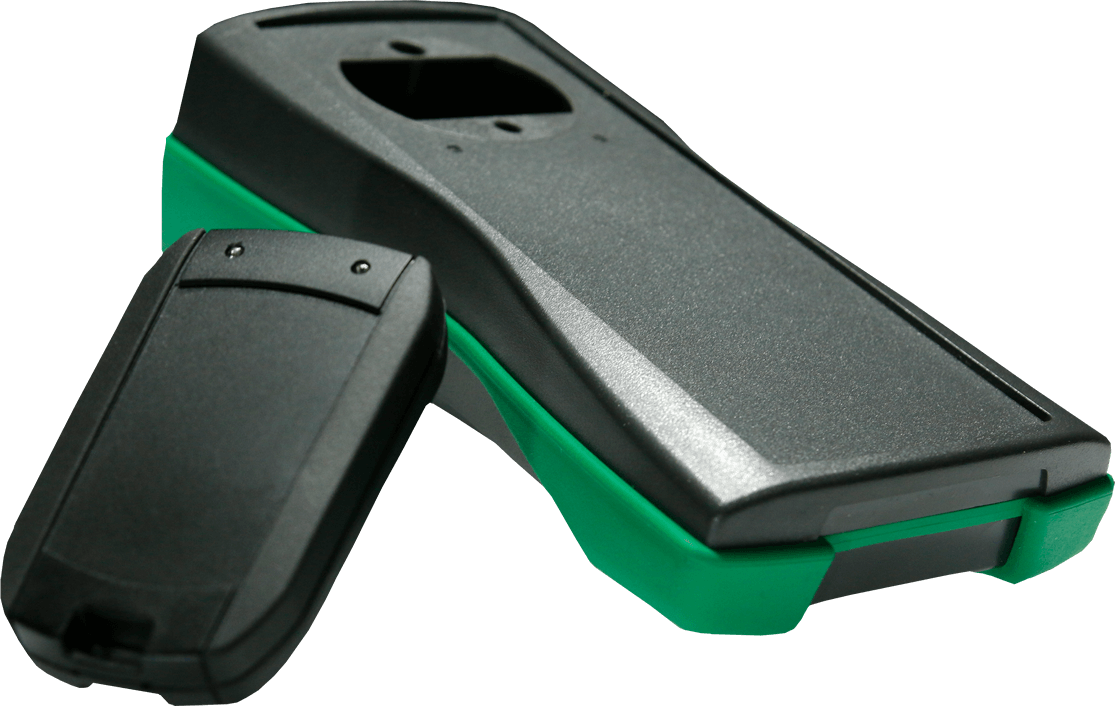

  • Tango with active subscription

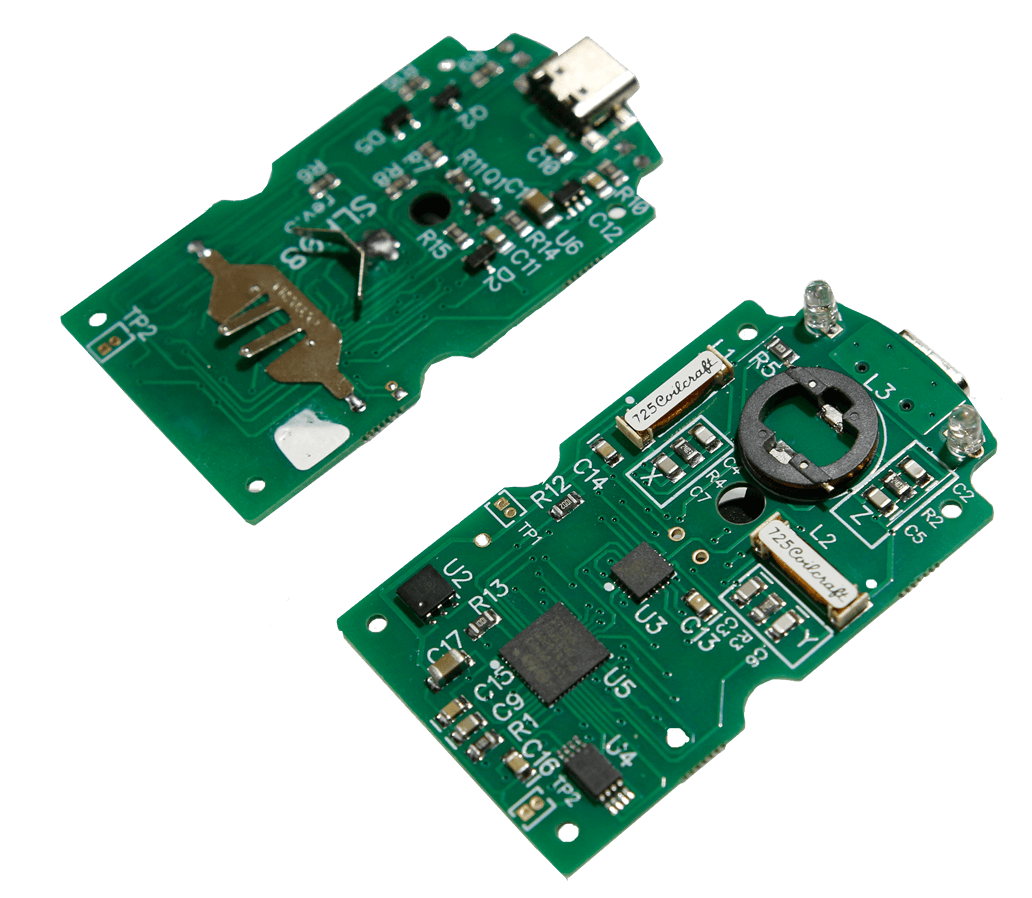

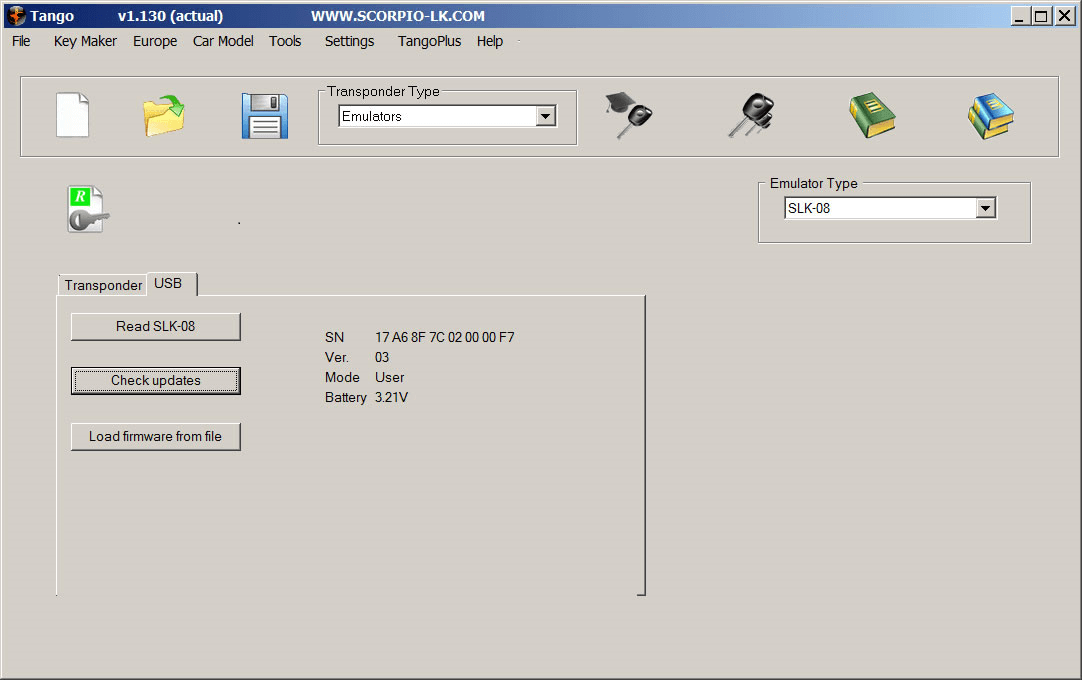

  • SLK-08 Emulator
  • USB Cable: Type A-Male to C-Male for SLK-8 (not included with SLK-08)
  • USB Cable: Type A-Male to B-Male for Tango

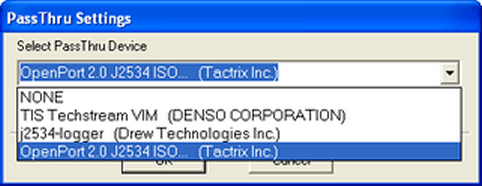

  • J2534 PassThru compatible OBD cable
  • x86/x64 Windows operated PC 7, 8, 10, 11 for 64-bit
  • 3 PC/Laptop available USB2.0+ Type A ports

How to ?

Video guides

Tango+

Toyota v9.7 (legacy)

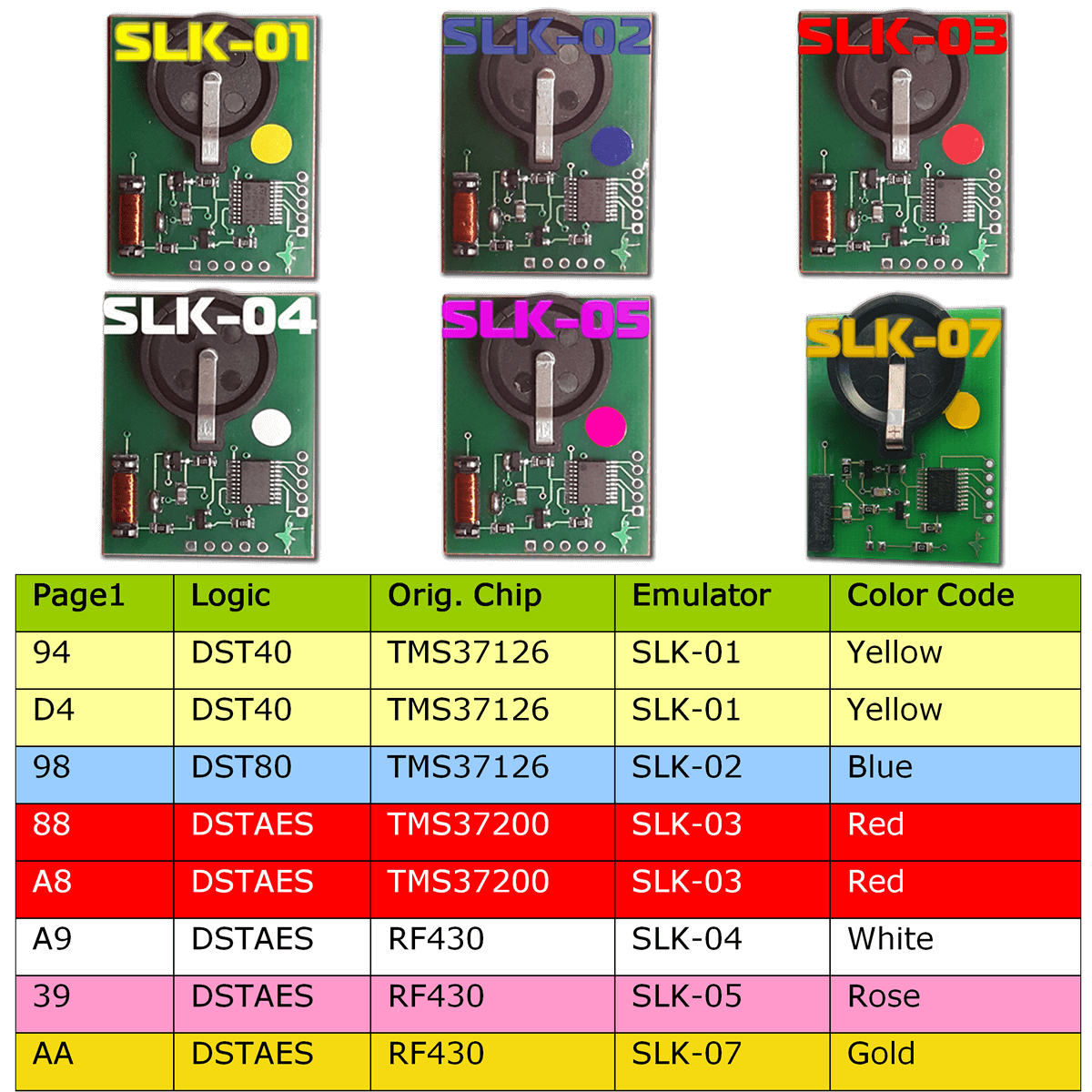

Legacy version of Tango+ Toyota which supports work with emulators SLK-01, 02, 03, 04, 05 & 07 for Texas DST 40, 80 & 128bit smart systems and 40/80 bit immobilizers.

SLK VID my chan unlisted test

Features

Highlights

  • All Keys lost solutions
  • All generations DST Smart Systems
  • G-Immo
  • H-Immo
  • Keys Add/Erase
  • Immobilizer Reset
  • IDcode & ESL registration

Type Function Original Key Allowed Key Availability Documentation

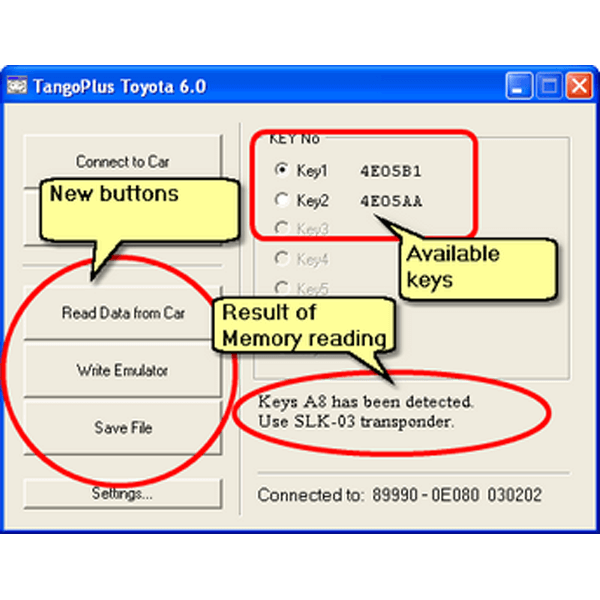

Toyota & Lexus Smart Systems after 2017 All keys lost TMS37200 DST AES Page1 A8 SLK-03 Subscription PDF
All keys lost RF430 DST AES Page1 A9 SLK-04 Subscription PDF
All keys lost RF430 DST AES Page1 AA SLK-07 Subscription PDF
Key Learn (including supported online models) System type defined System type defined: RF430, TMS37200 Subscription PDF
Erase Keys Subscription PDF
IDcode box & ESL registration Subscription PDF
Direct OBD connection bypasses alarm armed state Subscription PDF
Toyota & Lexus Smart Systems before 2017 All keys lost TMS37126 DST 40 Page1 94, D4 SLK-01 Subscription PDF
All keys lost TMS37200 DST 80 Page1 98 SLK-02 Subscription PDF
All keys lost TMS37200 DST AES Page1 A8 SLK-03 Subscription PDF
All keys lost TMS37200 DST AES Page1 88 SLK-03 Subscription PDF
All keys lost RF430 DST AES Page1 A9 SLK-04 Subscription PDF
All keys lost RF430 DST AES Page1 39 SLK-05 Subscription PDF
Key Learn System type defined System type defined: TMS37126, TMS37200 ,RF430 Subscription PDF
Erase Keys Subscription PDF
IDcode box & ESL registration Subscription PDF
Toyota H-Immo Immobilizer Reset (not applicable for EUR type) For EUR type Toyota & PSA vehicles All Keys Lost Solution: Barracuda + Tango Subscription PDF
Toyota H-Immo Key Learn/Erase TRPWS21 TRPWS21 Page1: 3A,39,59,5A (Master) / 7A, 99 (Sub) Subscription PDF
Toyota G-Immo Immobilizer Reset (all regions) Subscription PDF
Toyota G-Immo Key Learn Tiris DST 80 TIRIS DST 80, CN5, LKP-02 Page1: 19,36,56,37,57 (Master) / 96, 97 (Sub) Subscription PDF
Toyota DST 4D Immo Immobilizer Reset (all regions) Subscription PDF
Toyota DST 4D Immo Key Learn (Manual procedure) System type defined DST 4D System type defined DST 4D (ID67, 68, 70, 70E) Manual procedure PDF

Tango+

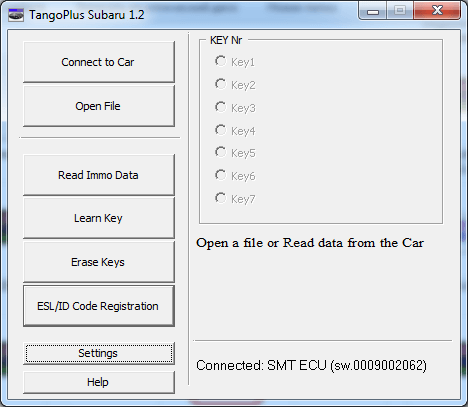

Subaru

Is an OBD Framework, with focus on Subaru vehicles equipped Smart Systems.

Features

Highlights

  • All Keys Lost
  • DST80 P1 F1 systems
  • DST128 P1 F3 systems
  • Keys Add/Erase
  • IDcode & ESL registration.

Type Function Original Key Allowed Key Availability Documentation

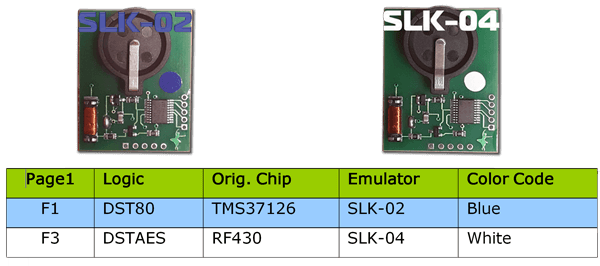

Subaru Smart Systems up to 2017 All keys lost TMS37126 DST 80 Page1 F1 SLK-02 Subscription PDF

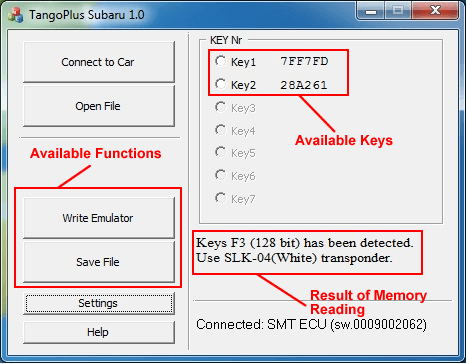

All keys lost RF430 DST AES Page1 F3 SLK-04 Subscription PDF

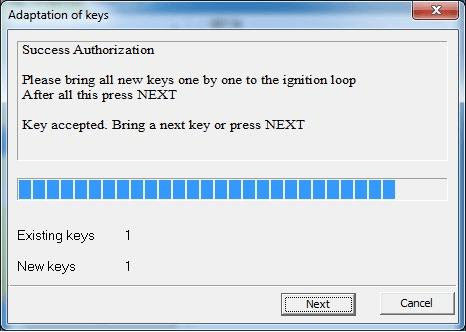

Key Learn System type defined System type defined: TMS37126, RF430 Subscription PDF
Erase Keys Subscription PDF
IDcode box & ESL registration Subscription PDF
