Tango+ Subaru OBD Framework

Tango+

Subaru v2.0

Is an OBD Framework for Subaru vehicles. It covers Subaru MCU based smart systems.
In particular "All Keys Lost" solutions for DST80 & DST AES 78, F1, F3, F4 keys. It covers most 80 and 128bit Subaru smart systems with vehicle models like, but not limited to, Outback, Legacy, XV, BRZ, Toyota GR86 (2021+), etc...

Features

Highlights

  • All Keys lost solutions
  • DST Smart keys with Page1 : 78, F1, F3, F4
  • Keys Learn/Erase
  • Key learn of used smart keys (reset in Tango's main software first)
  • IDcode & ESL registration

Getting started

What do I need ?

System Requirements

  • Tango with active subscription
  • SLK-08 Emulator
  • USB Cable: Type A-Male to B-Male for Tango
  • J2534 PassThru compatible OBD cable
  • x86/x64 Windows operated PC 7, 8, 10, 11 for 64-bit
  • 2 PC/Laptop available USB2.0+ Type A ports
  • Internet connection

How to ?

Video guides

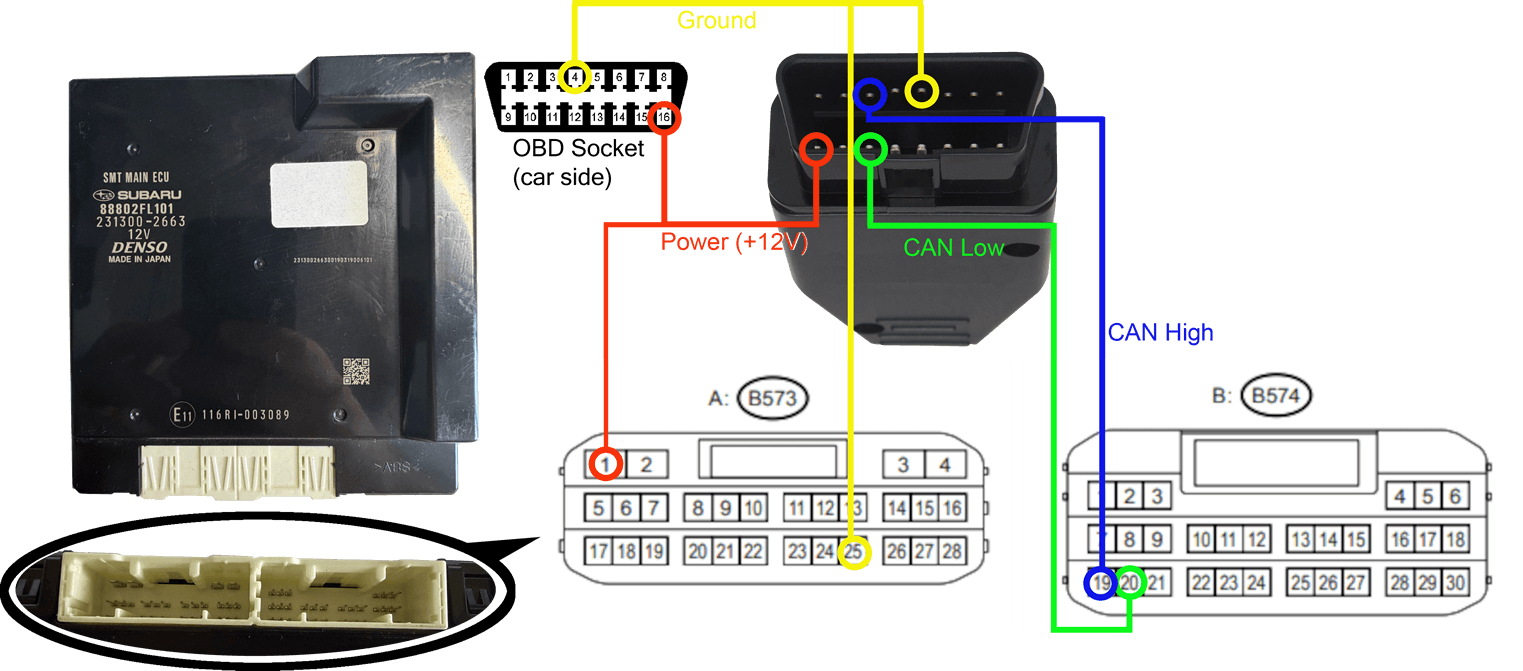

Connection diagram for DST AES Online systems

For some of the newer smart system direct parallel connection to the smart ECU in the vehicle and internet connection are required. Example models Subaru BRZ, Toyota GR86 (2021+)

Tango+

Subaru v1.4 (legacy)

Is an OBD Framework, with focus on Subaru vehicles equipped Smart Systems.

Features

Highlights

  • All Keys Lost
  • DST80 P1 F1 systems
  • DST128 P1 F3 systems
  • Keys Add/Erase
  • IDcode & ESL registration.

Type Function Original Key Allowed Key Availability Documentation
Subaru Smart Systems up to 2017 All keys lost TMS37126 DST 80 Page1 F1 SLK-02 Subscription PDF
All keys lost RF430 DST AES Page1 F3 SLK-04 Subscription PDF
Key Learn System type defined System type defined: TMS37126, RF430 Subscription PDF
Erase Keys Subscription PDF
IDcode box & ESL registration Subscription PDF
